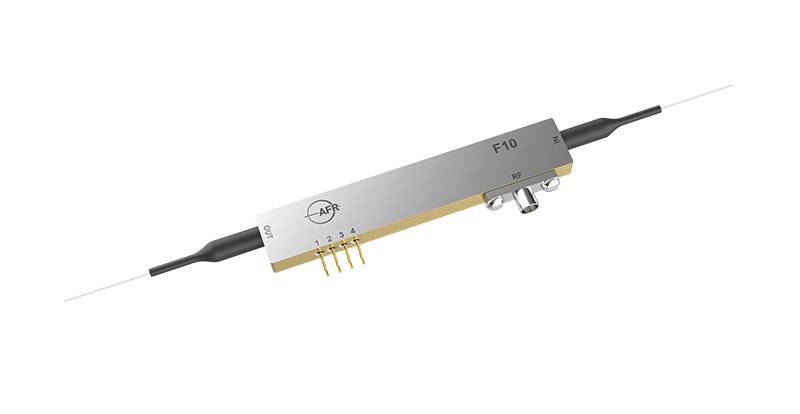

20/40 GHz Intensity Modulator

AFR broadband analog intensity modulators combine high linearity with a low driving voltage and small footprint, covering the entire frequency range from 20 GHz to beyond 40 GHz (AM20-XT: 20 - 30 GHz; AM40-XT: More than 30 GHz). The AM-XT version provides an extended operating temperature range of - 55 to + 85°C for harsh environmental applications.

INQUIRY NOW

Product Details

Features

• Titanium Indiffused Waveguide

• X-Cut LiNbO3

• Operating at C+L Band

• Low Drive Voltage Compatible with Commercially Available Drivers

• Low Optical Insertion Loss

• Bandwidth up to 60 GHz

• Integrated Photodiode

• Integrated Polarizer

• Hermetically Sealed

• Operating and Storage Temperature at - 55 to + 85°C


Applications

• Digital Transmission

• Analog Transmission

• High Frequency RF over Fiber Optic Links

• Delay Lines Systems

• Instrumentation
