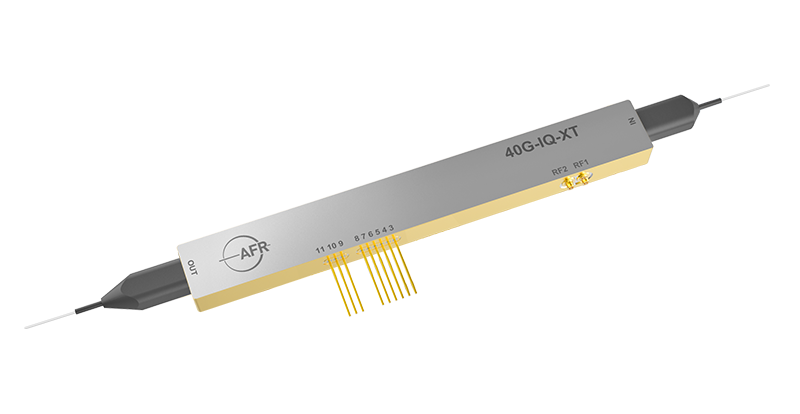

40 GHz IQ Modulator
The 40G-IQ-XT modulator design is based on a dual parallel structure of 2 Mach-Zehnder modulators embedded in a Mach-Zehnder super-structure. Each internal modulator is designed to have EO bandwidth above 20 GHz. Monitor photodiode is provided for automatic bias control. The 40G-IQ-XT version is provided with an extended operating temperature of - 55 to + 85°C for different environmental applications.
INQUIRY NOWProduct Details
Features • Titanium Indiffused Waveguide • Operating at C-Band • X-Cut LiNbO3 • High Bandwidth Operating > 30 GHz • Low Optical Insertion Loss • Compliance with Telcordia GR-468-Core • Extended Operating Temperature at - 55 °C to + 85 °C • Hermetically Sealed • Excellent Linearity | Applications • OFDM Coding • QPSK Coding • QAM Coding • CS-SSB (Carrier Suppressed Single Side Band) • FMCW LiDAR in Autonomous Driving |
